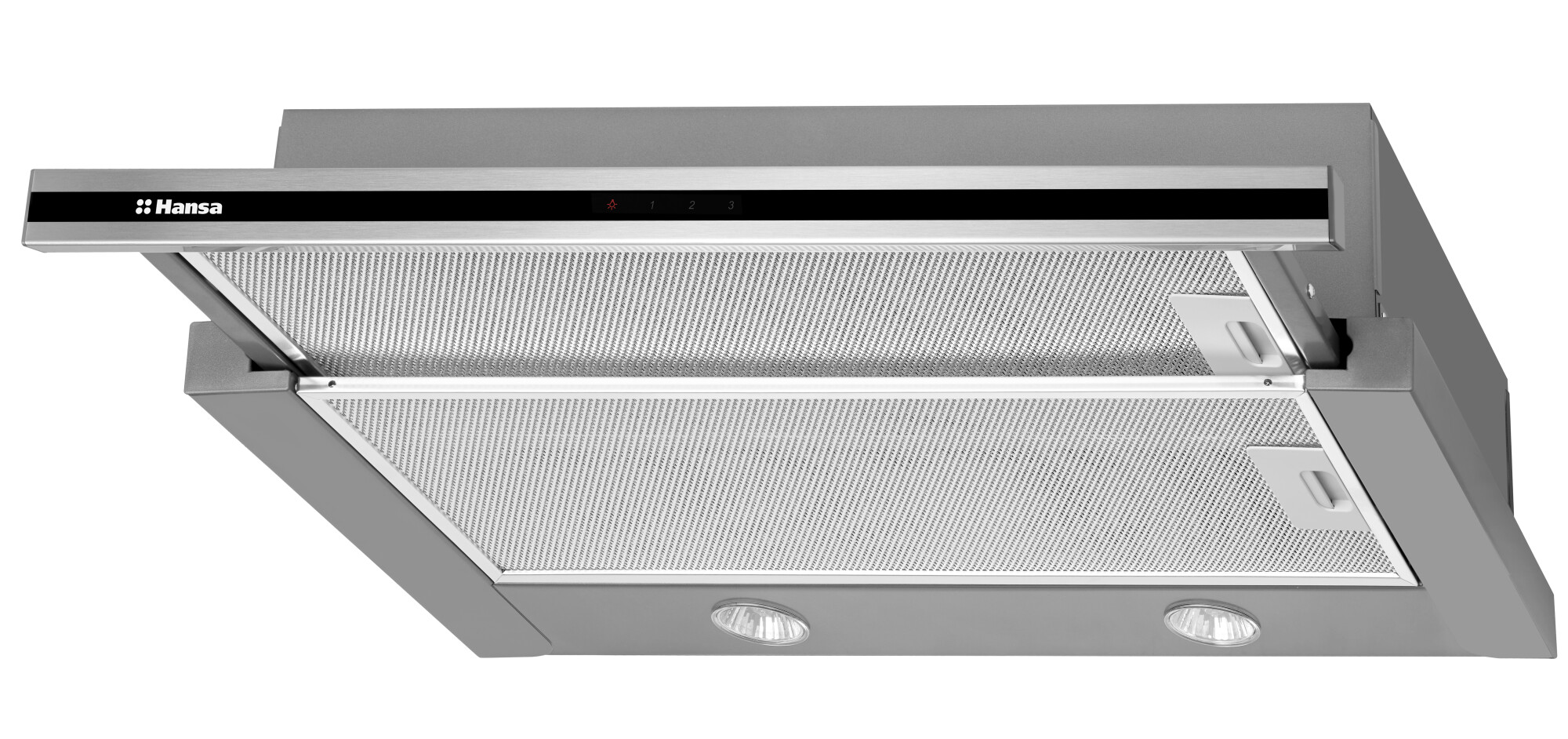

OTC6541IGH
-
FEATURES
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Delay Yes
- Maximum time of delay 15 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 2
- Number of layers in grease filter 3
- Number of speed 3

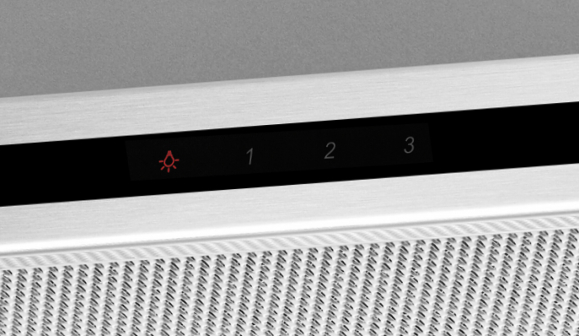

- Type of control Sensor

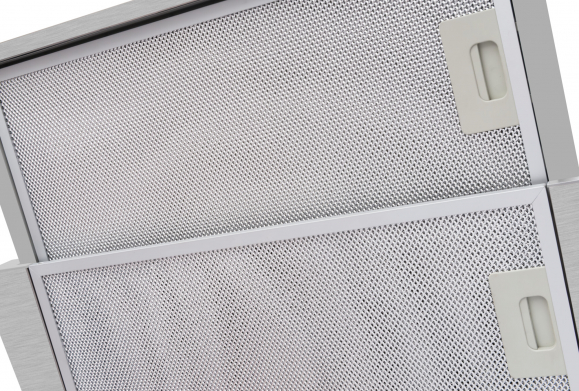

- Type of grease filters Aluminium frame
- Carbon filter type FWK 23
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 337 m3/h
- Air flow at 2 speed - extractor by EN 61591 377 m3/h
- Air flow at 3 speed - extractor by EN 61591 397 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 397 m3/h
- Air Flow at Minimum Speed in Normal Use 337 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 213.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 139 Pa
- Annual energy consumption 65 kWh
- Annual energy consumption 65 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 265 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Poland
- Dimensions of grease filter 200x496x9mm
- Display color Red
- Distance from light cover to wall 10 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 98.2 W
- Fluid Dynamic Efficiency - FDE hood 8.7
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 73.6 %
- Grease Filtering Efficiency Class D
- Internal/external motor Internal
- Lighting Efficiency - LE hood 35.3 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 397 m3/h
- Motor unit rated power 120 W
- Motor type/model K-42 010 02 HE CW (Obudowa Gorenje SLS
- Net depth 320 mm
- Net height max 173 mm
- Net height min 173 mm
- Net weight 7.4 kg
- Net width 600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 68 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 73 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 75 dB
- Nominal Power of the Lighting System - W L 7.5 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 150 cm
- Power rating 126 W
- Power Supply Voltage 230V
- Power unit of main lighting 3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 75 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 68 dB
- Noise level 75 dB
- Time Increase Factor - f 1.7

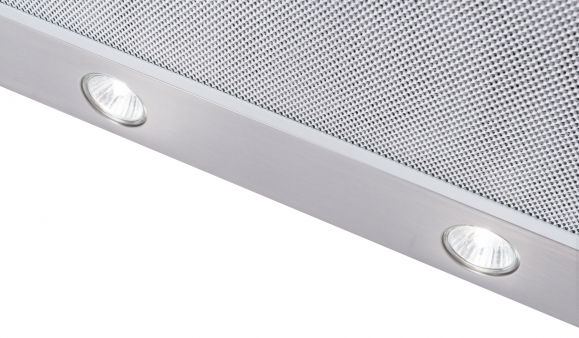

- Type of main lighting LED
