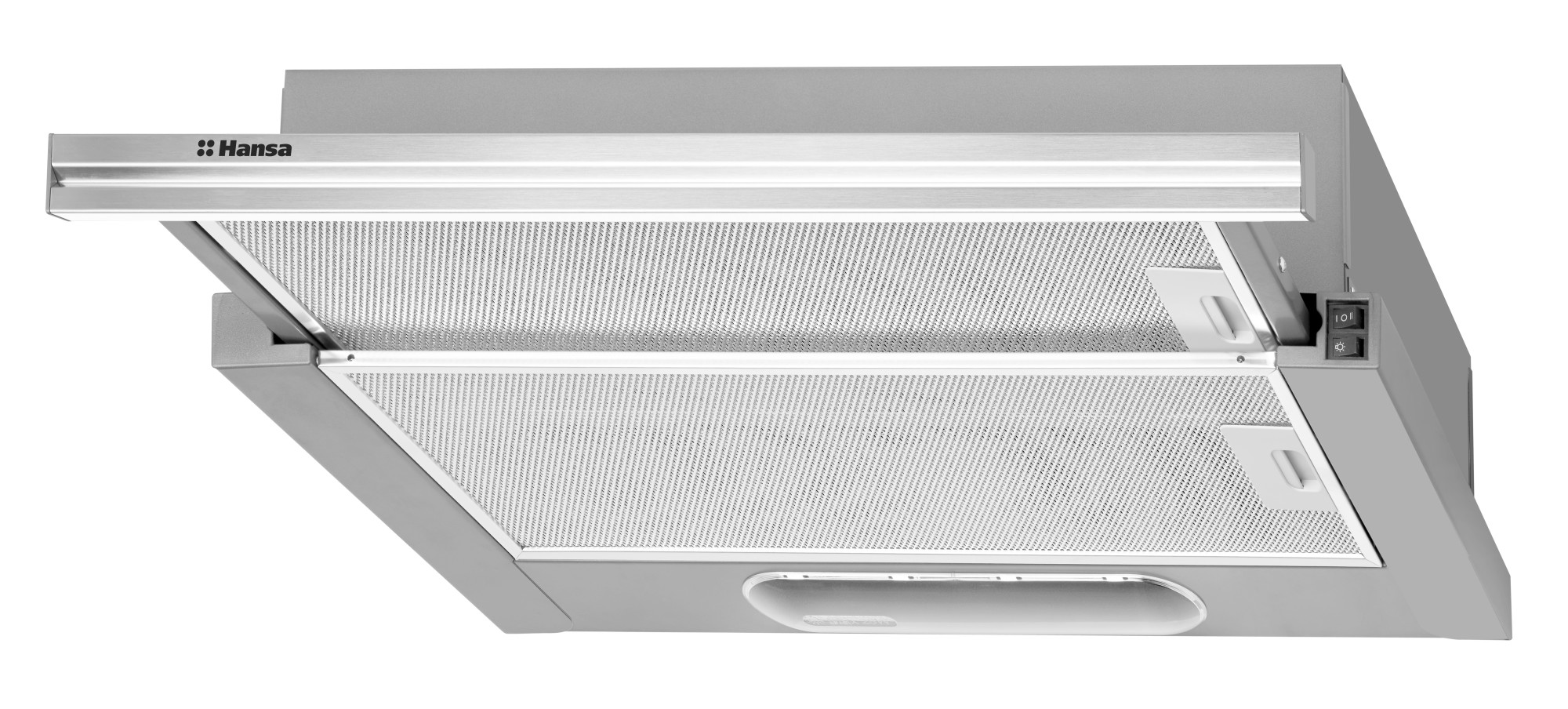

OTC6211IH OTC6211IH

i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

OTC6211IH

OTC6211IH

OTC6211IH

  • FEATURES

    • Air flaps:
      Yes
    • Auto Off:
      Yes
    • Automatic switch-on:
      Yes
    • Panel - language version:
      Pictograms
    • Protection class of electric shock:
      I_Class
    • Type of work:
      Extraction/Recirculation

  • Equipment

    • Number of carbon filters:
      1
    • Number of grease filters:
      2
    • Number of layers in grease filter:
      3
    • Number of speed:
      2
    • Type of control:
      Rocker switch
    • Type of grease filters:
      Aluminium frame
    • Carbon filter type:
      FWK 23

  • Technical data

    • Air flow at 1 speed - extractor by EN 61591:
      144 m3/h
    • Air flow at 2 speed - extractor by EN 61591:
      205 m3/h
    • Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
      205 m3/h
    • Air Flow at Minimum Speed in Normal Use:
      144 m3/h
    • Air Flow Rate at Best Efficiency Point - Q BEP:
      117.1 m3/h
    • Air Pressure at Best Efficiency Point P BEP:
      157 Pa
    • Annual energy consumption:
      54.6 kWh
    • Annual energy consumption:
      54.6 kWh
    • Average Illumination of the Lighting System on the Cooking Surface - E middle:
      61 lux
    • Control panel on one side/two sides:
      One side
    • Country of Origin on Rating Label:
      Made in EU
    • Dimensions of grease filter:
      200x496x9
    • Display color:
      No
    • Distance from light cover to wall:
      20 mm
    • Distance to electric hob:
      650 mm
    • Distance to gas hob:
      650 mm
    • Electric Power Input at Best Efficiency Point - W BEP:
      78.4 W
    • Fluid Dynamic Efficiency - FDE hood:
      6.5
    • Fluid Dynamic Efficiency Class:
      F
    • Grease Filtering Efficiency - GFE hood:
      68.5 %
    • Grease Filtering Efficiency Class:
      D
    • Internal/external motor:
      Internal
    • Lighting Efficiency - LE hood:
      14.5 lux/W
    • Lighting Efficiency Class:
      D
    • Lighting Efficiency Class:
      D
    • Maximum Possible Air Flow:
      205 m3/h
    • Motor unit rated power:
      90 W
    • Motor type/model:
      K-23 008 01 HE
    • Net depth:
      310 mm
    • Net height max:
      170 mm
    • Net height min:
      170 mm
    • Net weight:
      6.7 kg
    • Net width:
      600 mm
    • Noise level at 1 speed - extractor by EN 60704-2-13:
      57 dB
    • Noise level at 2 speed - extractor by EN 60704-2-13:
      65 dB
    • Nominal Power of the Lighting System - W L:
      4.2 W
    • Number of motor units:
      1
    • Number units of main lighting:
      1
    • Air exhaust diameter:
      120 mm
    • Type of plug or cable:
      Euro plug
    • Power cabel length:
      220 cm
    • Power rating:
      94 W
    • Power Supply Voltage:
      230V
    • Power unit of main lighting :
      4 W
    • Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
      65 dB
    • Sound Power Emission at Minimum Speed Available in Normal Use:
      57 dB
    • Noise level:
      65 dB
    • Time Increase Factor - f:
      1.8
    • Type of main lighting:
      LED
    • Type of main lighting:
      LED
