OKP6654IWSH

• Number of carbon filters:
  2
• Number of grease filters:
  1
• Number of layers in grease filter:
  5

• Number of speed:
  4

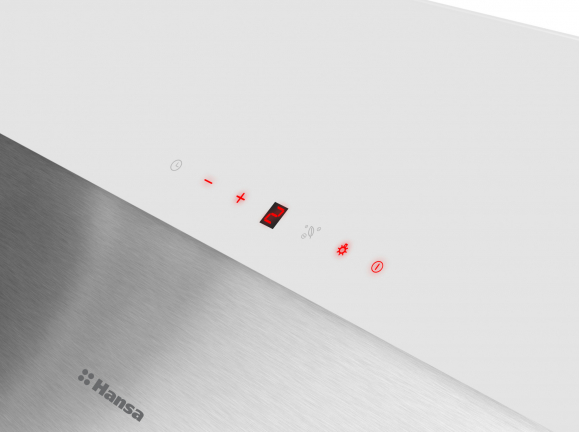

• Type of control:
  Sensor
• Type of display:
  LCD

• Type of grease filters:
  Aluminium frame
• Carbon filter type:
  FWP 18

• Frequency:
  50
• Air flow at 1 speed - extractor by EN 61591:
  406 m3/h
• Air flow at 2 speed - extractor by EN 61591:
  486 m3/h

• Air flow at 3 speed - extractor by EN 61591:
  642 m3/h
• Air flow at 4 speed - extractor by EN 61591:
  728 m3/h
• Air Flow at Intensive or Boost Setting [If Available]:
  728 m3/h

• Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  642 m3/h
• Air Flow at Minimum Speed in Normal Use:
  406 m3/h
• Air Flow Rate at Best Efficiency Point - Q BEP:
  382.2 m3/h

• Air Pressure at Best Efficiency Point P BEP:
  425.9 Pa
• Annual energy consumption:
  43.6 kWh
• Annual energy consumption:
  43.6 kWh

• Average Illumination of the Lighting System on the Cooking Surface - E middle:
  123.6 lux
• Container qty 40'HQ:
  292
• Control panel on one side/two sides:
  One side

• Country of Origin on Rating Label:
  Made in PRC
• Dimensions of grease filter:
  297x262 mm
• Display color:
  Red

• Distance from light cover to wall:
  36 mm
• Distance to electric hob:
  450 mm
• Distance to gas hob:
  650 mm

• Electric Power Input at Best Efficiency Point - W BEP:
  138.2 W
• Fluid Dynamic Efficiency - FDE hood:
  32.7
• Fluid Dynamic Efficiency Class:
  A

• Grease Filtering Efficiency - GFE hood:
  57 %
• Grease Filtering Efficiency Class:
  E
• Intensive or Boost Setting Auto-Off time:
  5 '

• Internal/external motor:
  Internal
• Main lighting colour temperature [K]:
  6500
• Lighting Efficiency - LE hood:
  27.5 lux/W

• Lighting Efficiency Class:
  B
• Lighting Efficiency Class:
  B
• Limitation of Exhaust Air - t limit:
  8 '

• Maximum Possible Air Flow:
  728 m3/h
• Motor unit rated power:
  300 W
• Motor type/model:
  E

• Net depth:
  490 mm
• Net height max:
  1420 mm
• Net height min:
  940 mm

• Net weight:
  18.9 kg
• Net width:
  600 mm
• Noise level at 1 speed - extractor by EN 60704-2-13:
  59 dB

• Noise level at 2 speed - extractor by EN 60704-2-13:
  66 dB
• Noise level at 3 speed - extractor by EN 60704-2-13:
  68 dB
• Noise level at 4 speed - extractor by EN 60704-2-13:
  69 dB

• Nominal Power of the Lighting System - W L:
  4.5 W
• Number of motor units:
  1
• Number units of main lighting:
  1

• Air exhaust diameter:
  150 mm
• Type of plug or cable:
  Euro plug
• Power Consumption in Standby Mode - Ps:
  0.55 W

• Power Consumption in Off Mode - Po:
  0.48 W
• Power cabel length:
  120 cm
• Power rating:
  304 W

• Power Supply Voltage:
  230V
• Power unit of main lighting :
  4 W
• Sound Power Emission at Intensive or Boost Setting [if available]:
  69 dB

• Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  68 dB
• Sound Power Emission at Minimum Speed Available in Normal Use:
  59 dB
• Noise level:
  68 dB

• Time Increase Factor - f:
  0.8
• Time Increase Factor - f:
  0.8
