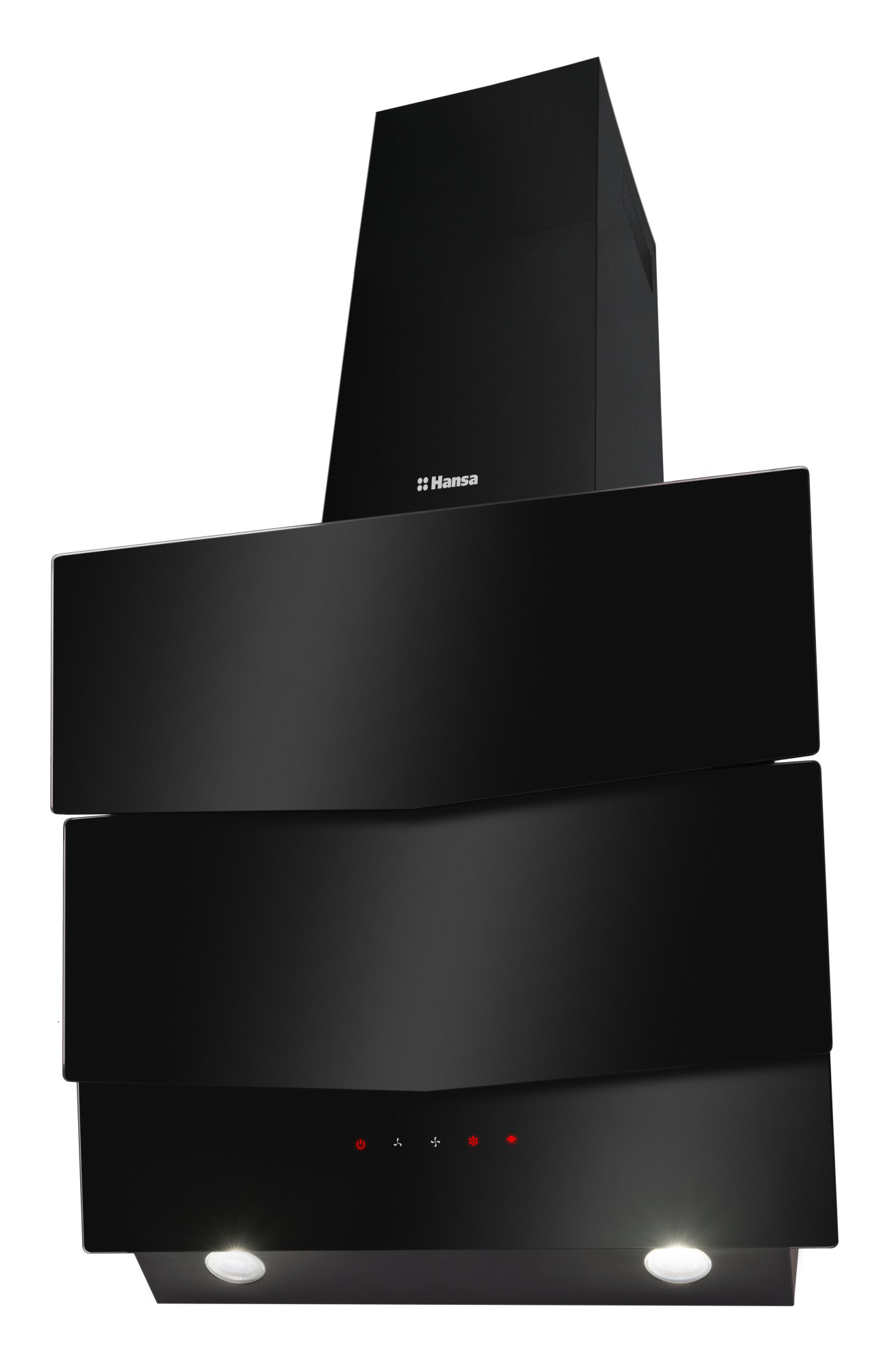

OKP6546SH

• Number of carbon filters:
  2
• Number of grease filters:
  1
• Number of layers in grease filter:
  5

• Number of speed:
  3
• Type of control:
  Sensor
• Type of grease filters:
  Aluminium frame

• Carbon filter type:
  FWP 05

• Frequency:
  50
• Air flow at 1 speed - extractor by EN 61591:
  436 m3/h
• Air flow at 2 speed - extractor by EN 61591:
  550 m3/h

• Air flow at 3 speed - extractor by EN 61591:
  650 m3/h
• Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  650 m3/h
• Air Flow at Minimum Speed in Normal Use:
  436 m3/h

• Air Flow Rate at Best Efficiency Point - Q BEP:
  403.2 m3/h
• Air Pressure at Best Efficiency Point P BEP:
  349.6 Pa
• Annual energy consumption:
  81.3 kWh

• Annual energy consumption:
  81.3 kWh
• Average Illumination of the Lighting System on the Cooking Surface - E middle:
  335 lux
• Container qty 40'HQ:
  332

• Control panel on one side/two sides:
  One side
• Country of Origin on Rating Label:
  Made in PRC
• Dimensions of grease filter:
  398.8x325x2

• Display color:
  Red
• Distance from light cover to wall:
  32.1 mm
• Distance to electric hob:
  450 mm

• Distance to gas hob:
  650 mm
• Electric Power Input at Best Efficiency Point - W BEP:
  173.1 W
• Fluid Dynamic Efficiency - FDE hood:
  22.6

• Fluid Dynamic Efficiency Class:
  C
• Grease Filtering Efficiency - GFE hood:
  57 %
• Grease Filtering Efficiency Class:
  E

• Internal/external motor:
  Internal
• Main lighting colour temperature [K]:
  3000
• Lighting Efficiency - LE hood:
  44.1 lux/W

• Lighting Efficiency Class:
  A
• Lighting Efficiency Class:
  A
• Maximum Possible Air Flow:
  650 m3/h

• Motor unit rated power:
  230 W
• Motor type/model:
  E series
• Net depth:
  455 mm

• Net height max:
  1240 mm
• Net height min:
  860 mm
• Net weight:
  20.9 kg

• Net width:
  600 mm
• Noise level at 1 speed - extractor by EN 60704-2-13:
  57 dB
• Noise level at 2 speed - extractor by EN 60704-2-13:
  63 dB

• Noise level at 3 speed - extractor by EN 60704-2-13:
  68 dB
• Nominal Power of the Lighting System - W L:
  7.6 W
• Number of motor units:
  1

• Number units of main lighting:
  2
• Air exhaust diameter:
  150 mm
• Type of plug or cable:
  Euro plug

• Power Consumption in Off Mode - Po:
  0.45 W
• Power cabel length:
  120 cm
• Power rating:
  237 W

• Power Supply Voltage:
  230V
• Power unit of main lighting :
  3.5 W
• Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  68 dB

• Sound Power Emission at Minimum Speed Available in Normal Use:
  57 dB
• Noise level:
  68 dB
• Time Increase Factor - f:
  1.2

• Time Increase Factor - f:
  1.2
