OKC613RBH OKC613RBH

OKC613RBH OKC613RBH

OKC613RBH

OKC613RBH

OKC613RBH

FEATURES
- Air flaps:
  Yes
- Panel - language version:
  Pictograms
- Protection class of electric shock:
  I_Class
- Type of work:
  Extraction/Recirculation
Equipment
- Number of carbon filters:
  2
- Number of grease filters:
  2
- Number of layers in grease filter:
  3
- Number of speed:
  3

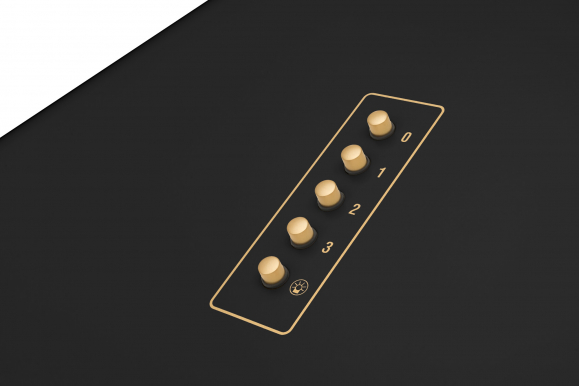

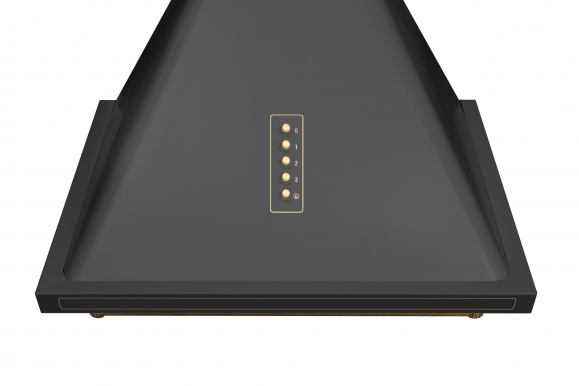

- Type of control:
  Push buttons

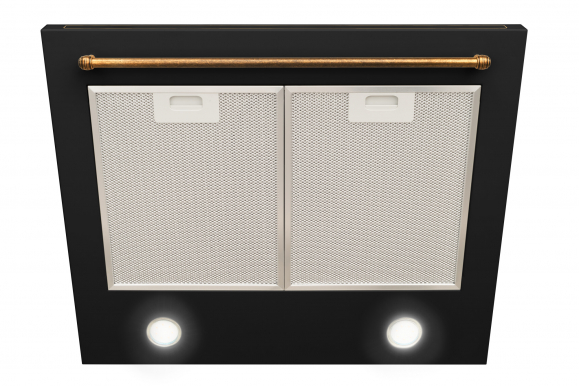

- Type of grease filters:
  Aluminium frame
- Carbon filter type:
  FWK 280
Technical data
- Frequency:
  50
- Air flow at 1 speed - extractor by EN 61591:
  153 m3/h
- Air flow at 2 speed - extractor by EN 61591:
  209 m3/h
- Air flow at 3 speed - extractor by EN 61591:
  403 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  403 m3/h
- Air Flow at Minimum Speed in Normal Use:
  152 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP:
  206.7 m3/h
- Air Pressure at Best Efficiency Point P BEP:
  163 Pa
- Annual energy consumption:
  66.1 kWh
- Annual energy consumption:
  66.1 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle:
  277 lux
- Control panel on one side/two sides:
  One side
- Country of Origin on Rating Label:
  Made in EU
- Dimensions of grease filter:
  250x300x9 mm
- Display color:
  No
- Distance from light cover to wall:
  30 mm
- Distance to electric hob:
  450 mm
- Distance to gas hob:
  650 mm
- Electric Power Input at Best Efficiency Point - W BEP:
  101.4 W
- Fluid Dynamic Efficiency - FDE hood:
  9.2
- Fluid Dynamic Efficiency Class:
  E
- Grease Filtering Efficiency - GFE hood:
  71.2 %
- Grease Filtering Efficiency Class:
  D
- Internal/external motor:
  Internal
- Lighting Efficiency - LE hood:
  46.1 lux/W
- Lighting Efficiency Class:
  A
- Lighting Efficiency Class:
  A
- Maximum Possible Air Flow:
  403 m3/h
- Motor unit rated power:
  115 W
- Motor type/model:
  K-28 030 00 HE
- Net depth:
  500 mm
- Net height max:
  1040 mm
- Net height min:
  760 mm
- Net weight:
  8 kg
- Net width:
  600 mm
- Noise level at 1 speed - extractor by EN 60704-2-13:
  46 dB
- Noise level at 2 speed - extractor by EN 60704-2-13:
  51 dB
- Noise level at 3 speed - extractor by EN 60704-2-13:
  64 dB
- Nominal Power of the Lighting System - W L:
  6 W
- Number of motor units:
  1
- Number units of main lighting:
  2
- Air exhaust diameter:
  150 mm
- Type of plug or cable:
  Euro plug
- Power cabel length:
  170 cm
- Power rating:
  121 W
- Power Supply Voltage:
  230V
- Power unit of main lighting :
  3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  64 dB
- Sound Power Emission at Minimum Speed Available in Normal Use:
  46 dB
- Noise level:
  64 dB
- Time Increase Factor - f:
  1.7
- Type of main lighting:
  LED
- Type of main lighting:
  LED
